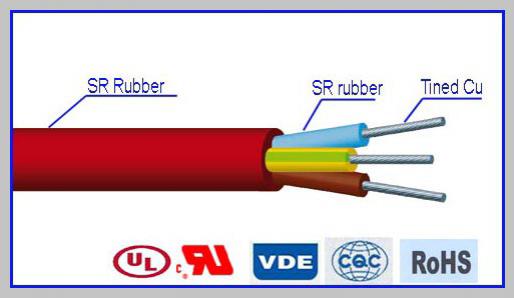

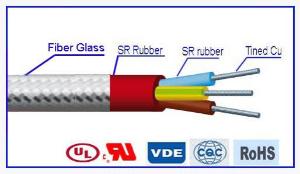

Conductor: Cobre desnudo, cobre estañado
Aislante: Goma de silicona
Envoltura: Goma de silicona
Tensión nominal: 600/1000V
Tensión de prueba: 3000V. 5min
Temperatura de operación: -60℃～+180℃
Aplicaciones
Los cables conductores de silicona de varios núcleos YGZ son una inmejorable alternativa cuando se necesita de una alta flexibilidad y buena resistencia a temperaturas extremas. Por ende, son perfectos para electrodomésticos, aparatos de alta tensión como transformadores, motores y máquinas de tracción.
| Núcleo×Sección transversal | Estructura | Espesor de aislamiento | Envoltura | DE del cable | Resistencia máxima a 20℃ Ω/KM | |||
| Nominal | DE | Espesor | Nominal | Tolerancia | ||||
| mm² | No./Diámetro. mm | mm | mm | mm | mm | mm | Desnudo | Estañado |
| 2×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 5.9 | ±0.20 | 39.0 | 40.1 |
| 3×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 6.2 | ±0.20 | 39.0 | 40.1 |
| 4×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 6.8 | ±0.30 | 39.0 | 40.1 |
| 5×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 7.4 | ±0.30 | 39.0 | 40.1 |
| 6×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 7.6 | ±0.30 | 39.0 | 40.1 |
| 7×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 8.1 | ±0.20 | 39.0 | 40.1 |
| 2×0.75 | 24/0.20 | 0.6 | 2.35 | 0.8 | 6.3 | ±0.25 | 26.0 | 26.7 |
| 3×0.75 | 24/0.20 | 0.6 | 2.35 | 0.8 | 6.7 | ±0.30 | 26.0 | 26.7 |
| 4×0.75 | 24/0.20 | 0.6 | 2.35 | 1.0 | 7.7 | ±0.30 | 26.0 | 26.7 |
| 5×0.75 | 24/0.20 | 0.6 | 2.35 | 1.0 | 8.4 | ±0.30 | 26.0 | 26.7 |
| 6×0.75 | 24/0.20 | 0.6 | 2.35 | 1.0 | 8.6 | ±0.30 | 26.0 | 26.7 |
| 2×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 7.1 | ±0.25 | 19.5 | 20.0 |
| 3×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 7.5 | ±0.30 | 19.5 | 20.0 |
| 4×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 8.2 | ±0.30 | 19.5 | 20.0 |
| 5×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 8.9 | ±0.30 | 19.5 | 20.0 |
| 6×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 9.2 | ±0.30 | 19.5 | 20.0 |
| 7×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 9.7 | ±0.30 | 19.5 | 20.0 |
| 2×1.5 | 30/0.25 | 0.6 | 2.9 | 1.0 | 7.8 | ±0.30 | 13.3 | 13.7 |
| 3×1.5 | 30/0.25 | 0.6 | 2.9 | 1.0 | 8.3 | ±0.30 | 13.3 | 13.7 |
| 4×1.5 | 30/0.25 | 0.6 | 2.9 | 1.0 | 9.0 | ±0.30 | 13.3 | 13.7 |
| 5×1.5 | 30/0.25 | 0.6 | 2.9 | 1.1 | 10 | ±0.30 | 13.3 | 13.7 |
| 6×1.5 | 30/0.25 | 0.6 | 2.9 | 1.1 | 10.4 | ±0.30 | 13.3 | 13.7 |
| 7×1.5 | 30/0.25 | 0.6 | 2.9 | 1.1 | 10.9 | ±0.30 | 13.3 | 13.7 |
| 10×1.5 | 30/0.25 | 0.6 | 2.9 | 1.2 | 14 | ±0.30 | 13.3 | 13.7 |
| 2×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 9.2 | ±0.30 | 7.98 | 8.21 |
| 3×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 9.8 | ±0.30 | 7.98 | 8.21 |
| 4×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 10.6 | ±0.30 | 7.98 | 8.21 |
| 5×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 11.6 | ±0.30 | 7.98 | 8.21 |
| 6×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 12 | ±0.30 | 7.98 | 8.21 |
| 7×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 12.6 | ±0.30 | 7.98 | 8.21 |
| Núcleo×Sección transversal | Estructura | Espesor de aislamiento | Envoltura | DE del cable | Resistencia máxima a 20℃ Ω/KM | |||
| Nominal | DE | Espesor | Nominal | Tolerancia | ||||
| mm² | No./Diámetro. mm | mm | mm | mm | mm | mm | Desnudo | Estañado |
| 2×4 | 56/0.30 | 0.8 | 4.3 | 1.2 | 11.2 | ±0.30 | 4.95 | 5.09 |
| 3×4 | 56/0.30 | 0.8 | 4.3 | 1.3 | 12.0 | ±0.30 | 4.95 | 5.09 |
| 4×4 | 56/0.30 | 0.8 | 4.3 | 1.5 | 13.5 | ±0.30 | 4.95 | 5.09 |
| 5×4 | 56/0.30 | 0.8 | 4.3 | 1.5 | 14.8 | ±0.40 | 4.95 | 5.09 |
| 6×4 | 56/0.30 | 0.8 | 4.3 | 1.8 | 15.7 | ±0.40 | 4.95 | 5.09 |
| 7×4 | 56/0.30 | 0.8 | 4.3 | 1.8 | 16.6 | ±0.40 | 4.95 | 5.09 |
| 12×4 | 56/0.30 | 0.8 | 4.3 | 2.2 | 22.4 | ±0.50 | 4.95 | 5.09 |
| 2×6 | 84/0.30 | 0.8 | 4.9 | 1.5 | 13.0 | ±0.30 | 3.30 | 3.39 |
| 3×6 | 84/0.30 | 0.8 | 4.9 | 1.5 | 13.7 | ±0.30 | 3.30 | 3.39 |
| 4×6 | 84/0.30 | 0.8 | 4.9 | 1.8 | 15.6 | ±0.40 | 3.30 | 3.39 |
| 5×6 | 84/0.30 | 0.8 | 4.9 | 1.8 | 17.0 | ±0.40 | 3.30 | 3.39 |
| 6×6 | 84/0.30 | 0.8 | 4.9 | 2.0 | 18.0 | ±0.40 | 3.30 | 3.39 |
| 7×6 | 84/0.30 | 0.8 | 4.9 | 2.0 | 18.8 | ±0.40 | 3.30 | 3.39 |
| 2×10 | 84/0.40 | 1.0 | 6.6 | 1.8 | 17.0 | ±0.40 | 1.91 | 1.95 |
| 3×10 | 84/0.40 | 1.0 | 6.6 | 2.0 | 18.4 | ±0.50 | 1.91 | 1.95 |
| 4×10 | 84/0.40 | 1.0 | 6.6 | 2.2 | 20.6 | ±0.50 | 1.91 | 1.95 |
| 5×10 | 84/0.40 | 1.0 | 6.6 | 2.4 | 22.8 | ±0.50 | 1.91 | 1.95 |
| 2×16 | 126/0.40 | 1.2 | 8.2 | 2.0 | 22.6 | ±0.50 | 1.21 | 1.24 |
| 3×16 | 126/0.40 | 1.2 | 8.2 | 2.2 | 22.4 | ±0.50 | 1.21 | 1.24 |
| 4×16 | 126/0.40 | 1.2 | 8.2 | 2.4 | 25.0 | ±0.50 | 1.21 | 1.24 |
| 5×16 | 126/0.40 | 1.2 | 8.2 | 2.6 | 27.6 | ±0.50 | 1.21 | 1.24 |
| 2×25 | 196/0.40 | 1.4 | 10.1 | 2.2 | 25.0 | ±0.50 | 0.78 | 0.795 |
| 3×25 | 196/0.40 | 1.4 | 10.1 | 2.4 | 27.0 | ±0.50 | 0.78 | 0.795 |
| 4×25 | 196/0.40 | 1.4 | 10.1 | 2.4 | 29.5 | ±0.50 | 0.78 | 0.795 |
| 5×25 | 196/0.40 | 1.4 | 10.1 | 2.6 | 32.8 | ±0.60 | 0.78 | 0.795 |
| 2×35 | 276/0.40 | 1.4 | 11.4 | 2.4 | 28.0 | ±0.50 | 0.554 | 0.565 |
| 3×35 | 276/0.40 | 1.4 | 11.4 | 2.6 | 30.0 | ±0.50 | 0.554 | 0.565 |
| 4×35 | 276/0.40 | 1.4 | 11.4 | 2.6 | 33.0 | ±0.60 | 0.554 | 0.565 |
| 3×50 | 396/0.40 | 1.6 | 13.9 | 2.8 | 36.0 | ±0.60 | 0.386 | 0.393 |
| 4×50 | 396/0.40 | 1.6 | 13.9 | 2.8 | 39.6 | ±0.60 | 0.386 | 0.393 |
| 3×70 | 360/0.50 | 1.6 | 15.6 | 3.0 | 40.0 | ±0.60 | 0.272 | 0.277 |
| 3×95 | 475/0.50 | 1.8 | 18.1 | 3.2 | 45.8 | ±0.60 | 0.206 | 0.210 |
| 3×120 | 608/0.50 | 2.0 | 20.0 | 3.6 | 50.6 | ±0.80 | 0.161 | 0.164 |
| 3×150 | 756/0.50 | 2.2 | 22.4 | 3.8 | 56.2 | ±0.80 | 0.129 | 0.132 |
| 3×185 | 925/0.50 | 2.4 | 24.8 | 4.0 | 61.8 | ±1.0 | 0.106 | 0.108 |
| 3×240 | 1221/0.50 | 2.6 | 28.2 | 4.2 | 69.4 | ±1.0 | 0.0801 | 0.082 |
Propiedades mecánicas
Tensión de rotura: ≥5N/mm2
Elongación de ruptura del material aislante: ≥150%
Radio mínimo de flexión: 5×DE
Características
Nuestro cable aislado multiconductor YGZ ofrece una flexibilidad razonable y un óptimo rendimiento a temperaturas de entre -55℃ y 180℃.
La goma de silicona es un material aislante resistente al efecto corona, el cual le brinda al cable una excelente rigidez dieléctrica.
